Description

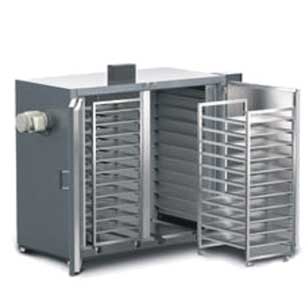

The internal structure is fully TIG welded and all the internals have ground smooth surfaces. It is insulated with minimum 50 mm thick glass wool insulation and Cladded with S,S, Polished sheets. The dryer is having a fresh air inlet through 20 Micron PP cloth filters and a adjustable air outlet flap and a door at the front. The door is explosion proof and is locked with the help of spring loaded ball latches with suitable pressure. Door lips are having Neoprene rubber Gasket to prevent leakages.
FINISHING
The design and manufacture of the dryer is of high standard of GMP and has an aesthetic look. It is buffed externally to 150 grit matt finish and internally buffed to 220 grit mirror finish.
ELECTRICAL HEATING
The Air inside the Tray Dryer is heated by “U” tube S.S.304 air heaters each of 1 KW.The heaters are fitted on the sides of the dryer to facilitate uniform heating. Maximum temperature attained inside the dryer is 100′ C and will be indicated and controlled by a Digital Temperature indicator cum controller over full range of heating load.
Total heating load for it will be:
12 Trays Dryer – 4 KW
24 Trays Dryer – 6 KW
48 Trays Dryer – 12 KW
96 Trays Dryer – 24 KW
The heaters will be inserted inside tubular pipe to prevent it from becoming RED HOT. The terminals of the heaters will be brought outside the dryer to make it safer for operations for solvent based products.
